Gmöhling

Shelf trolley G®-ORG E 2801

Whether you are commissioning in e-commerce, in the industrial sector, in a workshop or in the healthcare sector, Gmöhling shelf trolleys always ensure an efficient workflow.They guarantee reliable transport, intermediate storage of parts, as well as order-based disbursement or portioning at the conveyor belt.

Always easily manageable and quickly available everywhere, it reduces equipping and transit times.

The trolleys are optimised for the use of open-fronted storage bins. This makes our trolleys an indispensable component of many processes in operations that bring a clear improvement to internal workflows.The shelf trolleys are extremely stable and low-weight.


... the multi-purpose trolley
that meets the highest requirements

Advantages of the G®-ORG

  • Suitable for the transport of open-fronted storage bins (500 x 300 x 200 mm)
  • Easy handling and ergonomic, even at maximum load
  • Flexible, ideal when space is tight
  • An optimum overview and direct access to the contents
  • Very stable and high quality due to the welded shelves

Product description

  • Smooth surface
  • Permanently welded shelves create evenly spaced storage compartments
  • Storage compartments with a raised rim at the side and rear
  • Space between the shelves 230 mm
  • Every shelf can be fully loaded up to 100 kg equally distributed
  • 25 x 25 mm square aluminium pillar profiles on the short sides are also used for pushing the trolley
  • All-round, abrasion-resistant, blue PVC bumper on the lower rim of the trolley

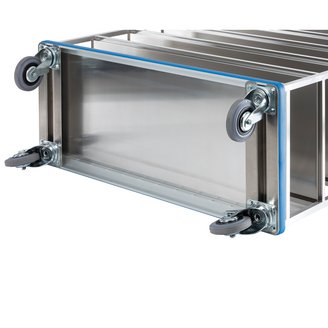

  • Stable undercarriage support made of galvanised steel
  • Galvanised steel wheel housing, 160 mm diameter wheel, non-marking solid rubber wheels, roller bearings and thread guards
  • Wheel arrangement D: 4 swivel castors, 2 of which have brakes

G®-ORG E 2801 - Models

Model number   Wheel
arrangement
Dimensions LxWxH
(approx. mm)
Number
of bins
Number of
compartments
Compartment height
(approx. mm)
Wheel-Ø
mm
Load capacity
(approx. kg)
Weight
(approx. kg)
Order number Query
internal external
E 2801 / 4 ???? D 980 x 520 x 1135 1070 x 590 x 1405 15 5 230 160 300 36 023280104 ????
E 2801 / 5 ???? D 980 x 520 x 1390 1070 x 590 x 1660 18 6 230 160 300 40 023280105 ????
E 2801 / 6 ???? D 1290 x 520 x 1150 1380 x 590 x 1420 20 5 230 160 300 43 023280106 ????
E 2801 / 7 ???? D 1290 x 520 x 1390 1380 x 590 x 1660 24 6 230 160 300 48 023280107 ????

Downloads

Catalogue



Is the size or version you need not listed in our varied product range? No problem! We also produce in small batch runs.
Just ask!
