Gmöhling

G®-SERV E 9501 / E 9502
made of aluminium
with stainless steel shelves

The Gmöhling serving trolley is modular in structure and thoughtfully designed to the very last detail. We offer trolleys with 2, 3 or 4 shelves. The height and number of shelves can also be changed. The shelves are also available in 2 versions: in aluminium or stainless steel.

To cut transport costs, we offer our serving trolley in an unassembled basic version for easy self-assembly.

The serving trolley, also referred to as a shelf trolley, is used for serving, transport and temporary storage. A practical aid for use in kitchens, laundries, hospitals, old people's homes, companies and various institutions.

Product description

  • Polished stainless steel shelves
  • Shelves with an all-round, raised profile rim made of anodised aluminium
  • Modular design available with a choice of 2, 3 or 4 shelves
  • Available in 2 sizes
  • Shelves can be fully loaded up to 60 kg
  • 25 x 25 mm square anodised aluminium pillar profiles on the short sides are also used as a handle
  • Shelves screw to the handles
  • 5 mounting positions allow for variable shelf spacing
  • 4 grey bumpers with a diameter of 100 mm on each wheel
  • Galvanised steel wheel housing, wheels with a thermoplastic rubber tread and plain bearings
  • Wheel arrangement D

Serving trolley ? Models

Model number   External dimensions
LxWxH
(approx. mm)
Shelf size
(approx. mm)
Shelf surface Number of
shelves
Shelf height
(approx. mm)
Load capacity
(approx. kg)
Weight
(approx. kg)
Order No. Query

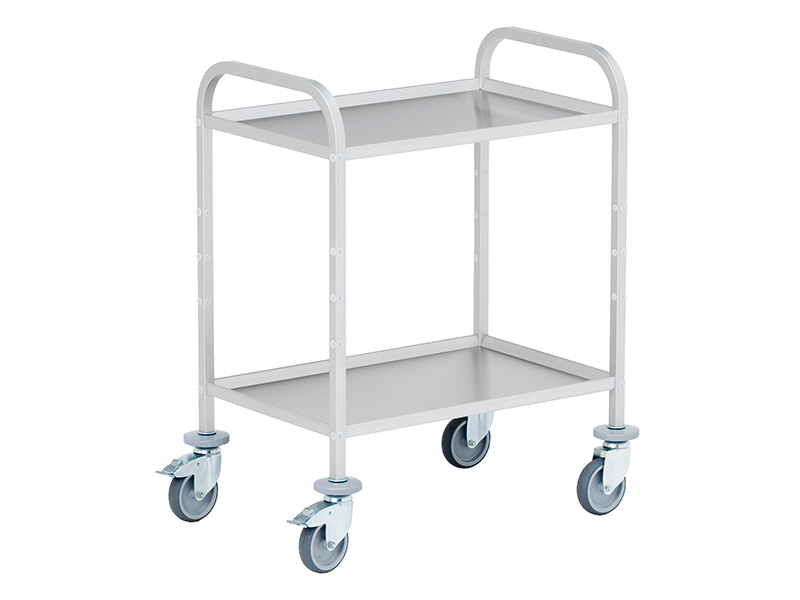

E 9501 / 2 E ???? 820 x 570 x 975 700 x 445 stainless steel 2 540 120 15 223950112 ????

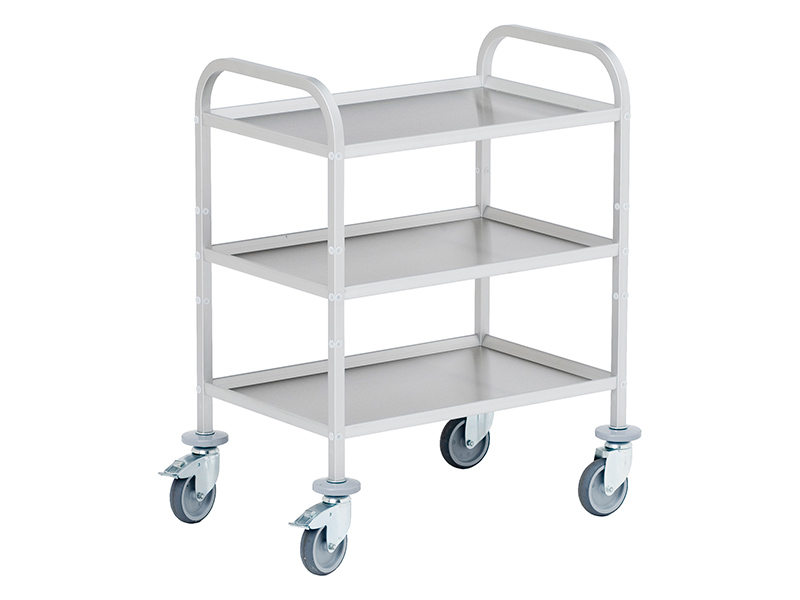

E 9501 / 3 E ???? 820 x 570 x 975 700 x 445 stainless steel 3 255 180 20 223950113 ????

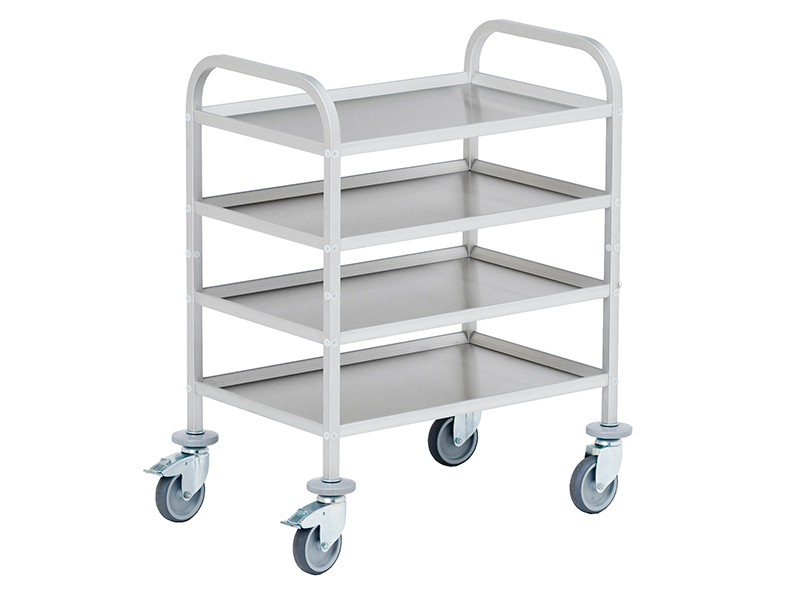

E 9501 / 4 E ???? 820 x 570 x 975 700 x 445 stainless steel 4 160 240 25 223950114 ????

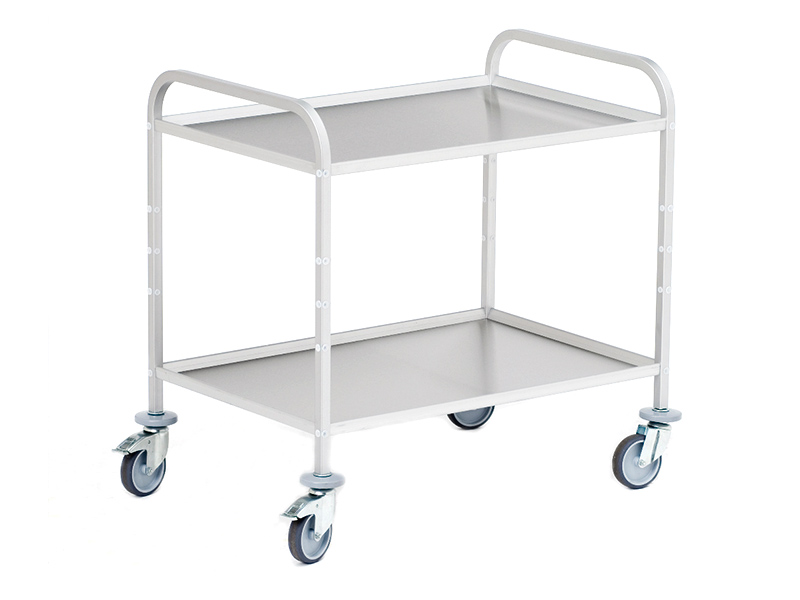

E 9502 / 2 E ???? 1060 x 740 x 975 935 x 615 stainless steel 2 540 120 20 223950212 ????

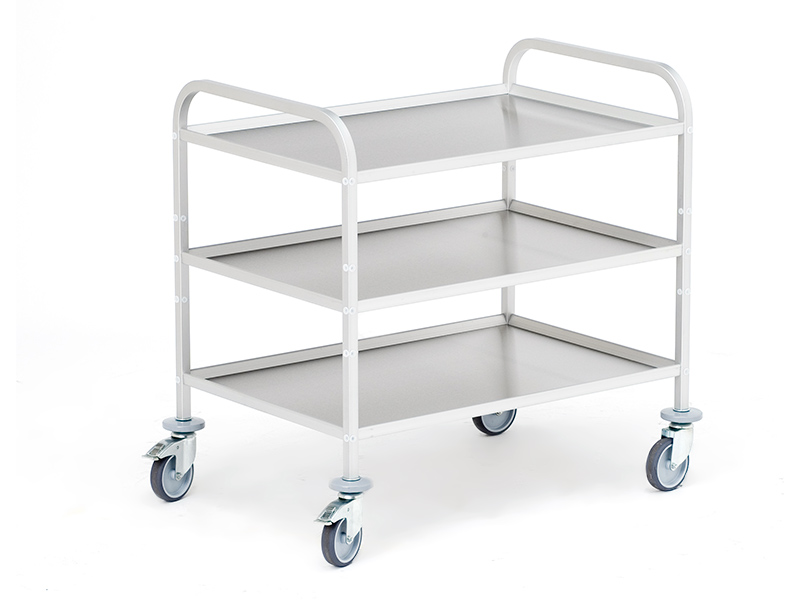

E 9502 / 3 E ???? 1060 x 740 x 975 935 x 615 stainless steel 3 255 180 27,5 223950213 ????

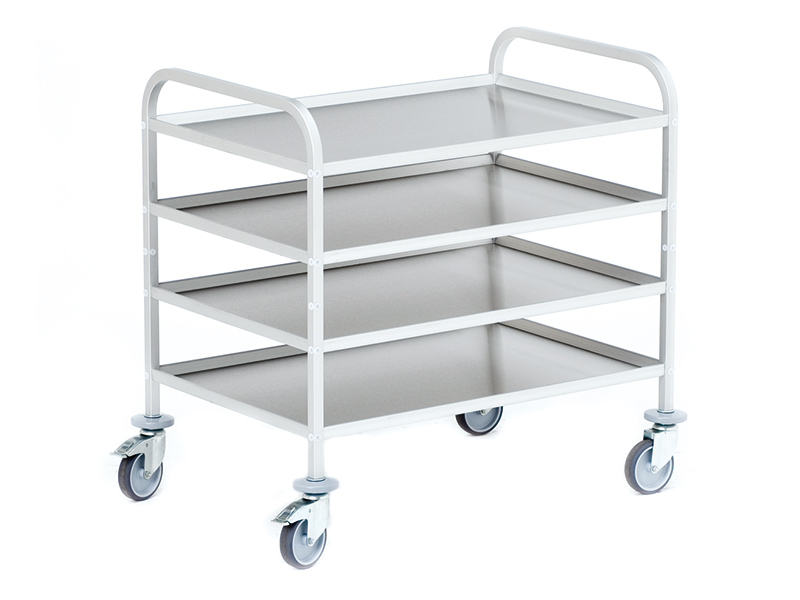

E 9502 / 4 E ???? 1060 x 740 x 975 935 x 615 stainless steel 4 160 240 35 223950214 ????

Downloads

Catalogue

Assembly instruction





Is the size or version you need not listed in our varied product range? No problem! We also produce in small batch runs.
Just ask!
