Gmöhling

G®-SERV E 9001 / E 9002 made of aluminium
for self-assembly

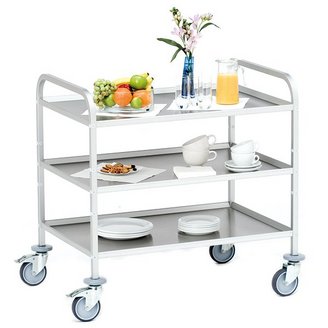

The Gmöhling serving trolley is modular in structure and thoughtfully designed to the very last detail. We offer trolleys with 2, 3 or 4 shelves. The height and number of shelves can also be changed. The shelves are also available in 2 versions: in aluminium or stainless steel.

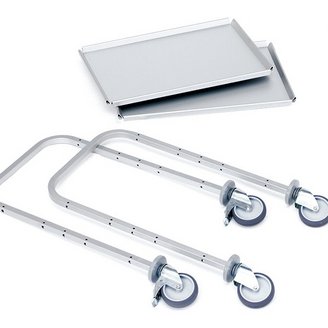

To cut transport costs, we offer our serving trolley in an unassembled basic version for easy self-assembly.

The serving trolley, also referred to as a shelf trolley, is used for serving, transport and temporary storage. A practical aid for use in kitchens, laundries, hospitals, old people's homes, companies and various institutions.

Product description

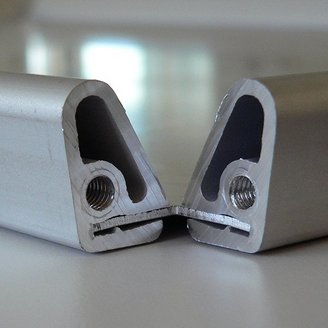

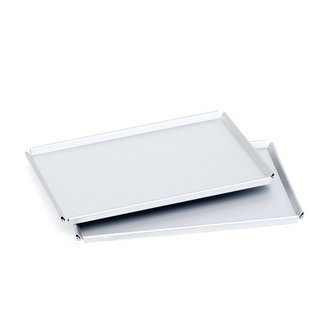

  • Basic version consists of 2 anodised pillars on the short sides with wheels, 2 shelves - either anodised aluminium or polished stainless steel and assembly material
  • Flat pack delivery reduces freight costs and storage space
  • Clear assembly instructions
  • Modular design available with a choice of 2, 3 or 4 shelves
  • Available in 2 sizes

Serving trolley ? Models

Model number   External dimensions
LxWxH
(approx. mm)
Shelf size
(approx. mm)
Shelf surface Number of
shelves
Shelf height
(approx. mm)
Load capacity
(approx. kg)
Weight
(approx. kg)
Order No. Query
Basic version E 9001 A ???? 820 x 570 x 975  700 x 445 Aluminium 2 540 120 11,5 223900102 ????
Shelf E 9001 A ????   700 x 445 Aluminium 1   60 3,5 045900101 ????
Basic version E 9002 A ???? 1060 x 740 x 975 935 x 615 Aluminium 2 540 120 15 223900202 ????
Shelf E 9002 A ????   935 x 615 Aluminium 1   60 5 045900201 ????
Basic version E 9001 E ???? 820 x 570 x 975 700 x 445 Stainless steel 2 540 120 13,5 223 900112 ????
Shelf E 9001 E ????   700 x 445 Stainless steel 1   60 4,5 045900111 ????
Basic version E 9002 E ???? 1060 x 740 x 975 935 x 615 Stainless steel 2 540 120 20 223900212 ????
Shelf E 9002 E ????   935 x 615 Stainless steel 1   60 7,5 045900211 ????

Downloads

Catalogue

Assembly instruction



Is the size or version you need not listed in our varied product range? No problem! We also produce in small batch runs.
Just ask!
