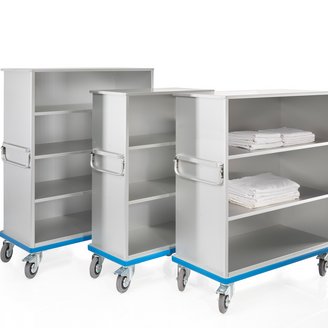

Open Cupboard Trolley
G®-CUP light E 2601 made of anodised aluminium

The open cupboard trolley is a reliable transport and storage trolley for all applications.It is ideal in constricted spaces.The open cupboard trolley can fit into any niche and guarantees an optimal overview and direct access to the contents.

It also scores points with its easy handling and cleaning, durability, variability, with ergonomic perfection and first-class quality. It is perfectly suited for use in any setting from a retirement home or hospital, as an in-plant tool trolley, garment trolley, mobile office as well as in schools and public facilities.

Product description

  • Anodised surface
  • Without doors for quick access and to save space
  • Smooth interior with no indentations for easy cleaning and handling
  • Ergonomic push/pull handle on both short sides
  • All-round, abrasion-resistant, blue PVC bumper on the lower rim of the trolley
  • Fixed shelves create evenly spaced storage compartments, each shelf can be loaded up to 100 kg equally distributed
  • Stable undercarriage support made of galvanised steel
  • Galvanised steel wheel housing, non-marking solid rubber wheels, 160 mm wheel, polypropylene wheel centre, roller bearings and thread guards

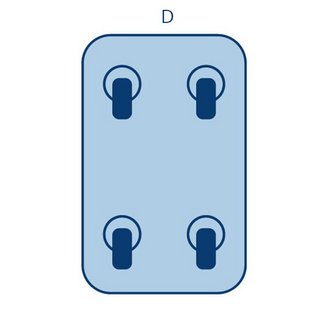

  • Wheel arrangement D: 4 swivel castors, 2 of which have brakes - swivel castors with brakes in accordance with European standard EN 1757-3

Models

Model number   Wheel
Arrange-ment
Dimensions LxWxH
(approx. mm)
Volume
(approx. l)
Number of
compart-ments
Compartment height
(approx. mm)
Wheel-Ø
mm
Load capacity
(approx. kg)
Weight
(approx. kg)
Order number Query
internal external
E 2601 / 1 ???? D 870 x 460 x 1160 960 x 500 x 1460 460 3 370 160 300 35 023260101 ????
E 2601 / 2 ???? D 1180 x 540 x 1160 1270 x 580 x 1460 740 3 370 160 300 41,5 023260102 ????
E 2601 / 3 ???? D 1180 x 540 x 1330 1270 x 580 x 1630 850 4 310 160 300 47 023260103 ????

Downloads

Catalogue



Is the size or version you need not listed in our varied product range? No problem! We also produce in small batch runs.
Just ask!
