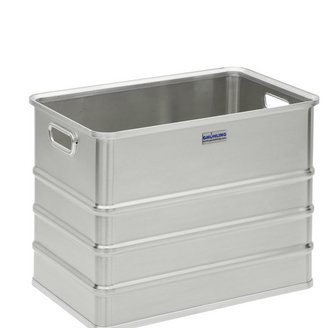

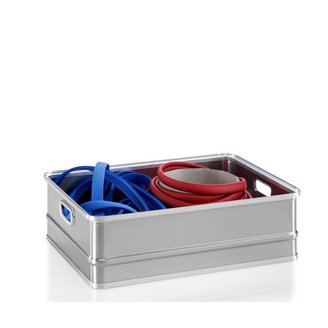

G®-CRATE A 152 made of aluminium

Open crates are much in demand for internal logistics and can be manufactured with smooth or ribbed sides depending on their intended use. We can also quickly meet your specific needs in terms of size, even if this involves a small batch run. Open crates are the non-plus ultra for optimising internal material flow. They are suitable for transport and storage and can even be stacked as a storage rack. Lids are also available as required.

Product description

  • Smooth surface
  • All-round, extremely stable profiles on the top rim of the container and bottom ensure a durable container design
  • Walls reinforced with all-round trapezoidal beadings (ribs)
  • 2 ergonomic integrated handles
  • 30 mm corner radius
  • Stackable and match to pallet dimensions (see table for exceptions)
Other versions

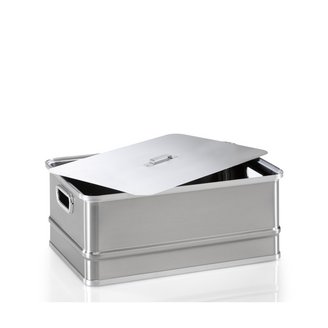

Model A 152 FK

  • With loose lid (still stackable)

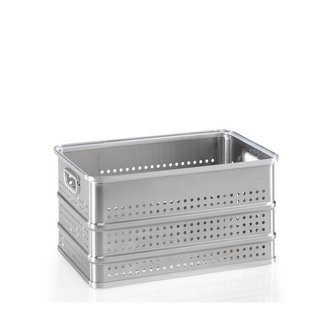

Model A 152/FK 35 perforated

  • Perforated walls and base with 10 mm Ø hole, 22.5 x 22.5 mm hole spacing

Crates – Models

Model
number
  Euro pallet
size
Dimensions L x W x H
(approx. mm)
Volume
(approx. l)
Load capacity
(approx. kg)
Weight
(approx. kg)
Walls and
bases
Order
number
Query
internal external
A 152 / 36 ???? yes 548 x 348 x 205 578 x 378 x 230 36 50 3 solid 000015221 ????
A 152 / 55 ???? yes 548 x 348 x 305 578 x 378 x 330 55 50 3,5 solid 000015223 ????
A 152 / 77 ???? yes 728 x 548 x 205 758 x 578 x 230 77 50 4,5 solid 000015225 ????
A 152 / 116 ???? yes 728 x 548 x 305 758 x 578 x 330 116 50 5 solid 000015227 ????
A 152 / 155 ???? yes 728 x 548 x 405 758 x 578 x 430 155 50 5,5 solid 000015229 ????
A 152 / FK 27 ???? no 620 x 400 x 235 650 x 430 x 260 60 50 3,5 solid 000015203 ????
A 152 / FK 35 ???? no 620 x 400 x 315 650 x 430 x 340 80 50 4 solid 000015205 ????
A 152 / FK 35 ???? no 620 x 400 x 315 650 x 430 x 340 80 50 4 perforated 000015206 ????
A 152 / FK 52 ???? no 620 x 400 x 480 650 x 430 x 505 120 50 4,5 solid 000015207 ????
Loose cover
for A 152 / FK
???? no         1,0 solid 045004901 ????

Downloads

Catalogue



Is the size or version you need not listed in our varied product range? No problem! We also produce in small batch runs.
Just ask!
